Top Grade China Livestock Manure Compost Windrow Turner

Short Description:

The M3800 is a large-scale self-propelled composting machine in China, with a working width of up to 4.3m and a working height of 1.7m. Its main structure is made of a very thick steel plate, which provides TEGM’s composting substrate mixer with a strong, stable body, as well as the advantages of corrosion resistance and flexible rotation. It is equipped with a 108-horsepower high-power Cummins diesel engine, which can easily stir sludge, compost, and other materials with high humidity and high viscosity. Combined with the hydraulic integral lifting technology, it can adapt to various complex working conditions and greatly improve work efficiency. It is a powerful and versatile compost turner.

Model: M3800

Lead Time: 30 Days

Type: Self-propelled

Working Width : 3800~4300mm

Working Height: 1700mm

Working Capacity: 1500m³/h

Send email to us

Product Detail

Product Tags

We stick to our enterprise spirit of “Quality, Efficiency, Innovation and Integrity”. We aim to create more value for our customers with our rich resources, advanced machinery, experienced workers and excellent services for Top Grade China Livestock Manure Compost Windrow Turner, We are now seeking forward to even bigger cooperation with overseas buyers dependant on mutual rewards. Should you be interested in almost any of our solutions, be sure to come to feel no cost to call us for additional particulars.
We stick to our enterprise spirit of “Quality, Efficiency, Innovation and Integrity”. We aim to create more value for our customers with our rich resources, advanced machinery, experienced workers and excellent services for Apro Wheel Turner, China Low Investment Turner, We’ve customers from more than 20 countries and our reputation has been recognized by our esteemed customers. Never-ending improvement and striving for 0% deficiency are our two main quality policies. Need to you will need anything, don’t hesitate to contact us.

Product parameter

Model	M3800		Ground clearance	120mm	H2
Rate Power	132KW（180PS）		Ground pressure	0.55Kg/cm²
Rate speed	2200 r/min		Working width	3800~4300mm	Max.
Fuel consumption	≤235g/KW·h		Working height	1700mm	Max.
Battery	24V	2×12V	Pile shape	Triangle	42°
fuel capacity	200L		Forward speed	L: 0-8m/min H: 0-21m/min
Crawler tread	4430mm	W2	Rear speed	L: 0-8m/min H:0-21m/min
Crawler size	300mm	Steel with shoe	Feed port width	3800

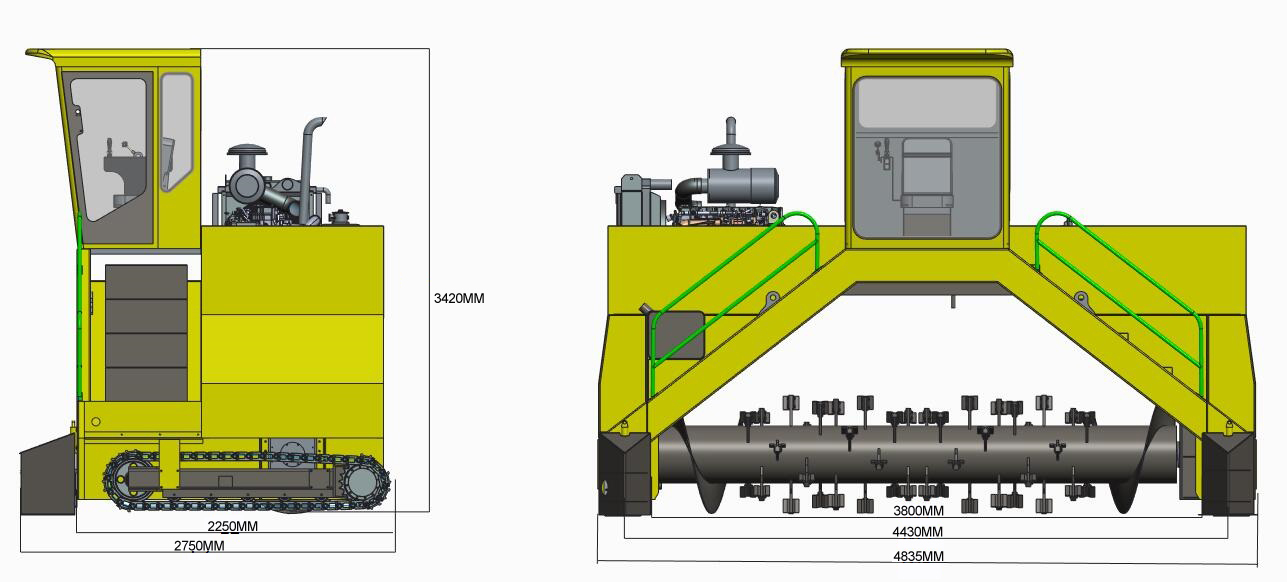

Oversize	4835×2750×3420 mm	W3×L1×H1	Turning radius	2700mm	min
Weight	6000kg	Without fuel	Drive mode	Hydraulic control
Diameter of roller	876mm	With knife	Working capacity	1500m³/h	Max.

compost turner
Compost turner's CUMMINS ENGINE

Efficient, Energy-saving and Powerful Engine

Professionally adjusted, specially custom, high quality brand turbocharged engine. It has strong power, low fuel consumption and high reliability, and meets the requirements of various complex working conditions of the compost turner.

(M2600 and above models equipped with Cummins engine)

Hydraulic system

Hydraulic Control Valve

High-tech content control valve, upgraded and optimized hydraulic system. It has high quality, excellent performance, long service life and low failure rate.

Integrated operation by the single handle.

ROLLER of compost turner

Specially Designed Roller

Manganese steel cutters on the roller are strong and corrosion resistant. By scientific spiral design, while the machine crushing the raw materials, mixing and turning the raw materials uniformly with one thousandth dispersion, and filling the compost with oxygen and cooling at the same time.

Please choose special rollers and knives according to the different characteristics of raw materials.
