One of Hottest for China Hydraulic Crawler Type Compost Windrow Turner

Short Description:

The M3800 is a large-scale self-propelled composting machine in China, with a working width of up to 4.3m and a working height of 1.7m. Its main structure is made of a very thick steel plate, which provides TEGM’s composting substrate mixer with a strong, stable body, as well as the advantages of corrosion resistance and flexible rotation. It is equipped with a 108-horsepower high-power Cummins diesel engine, which can easily stir sludge, compost, and other materials with high humidity and high viscosity. Combined with the hydraulic integral lifting technology, it can adapt to various complex working conditions and greatly improve work efficiency. It is a powerful and versatile compost turner.


  • Model: M3800
  • Lead Time: 30 Days
  • Type: Self-propelled
  • Working Width : 3800~4300mm
  • Working Height: 1700mm
  • Working Capacity: 1500m³/h
  • Product Detail

    Product Tags

    “Sincerity, Innovation, Rigorousness, and Efficiency” is definitely the persistent conception of our enterprise for the long-term to create together with buyers for mutual reciprocity and mutual advantage for One of Hottest for China Hydraulic Crawler Type Compost Windrow Turner, If you’re searching for a top quality, fast delivery, greatest following company and superior value supplier in China for long-term business partnership, we’re going to be your best choice.
    “Sincerity, Innovation, Rigorousness, and Efficiency” is definitely the persistent conception of our enterprise for the long-term to create together with buyers for mutual reciprocity and mutual advantage for China Low Investment Turner, Wheel Turner, We focus on providing service for our clients as a key element in strengthening our long-term relationships. Our continual availability of high grade merchandise in combination with our excellent pre-sale and after-sales service ensures strong competitiveness in an increasingly globalized market. We’re willing to cooperate with business friends from at home and abroad and create a great future together.

    Product parameter

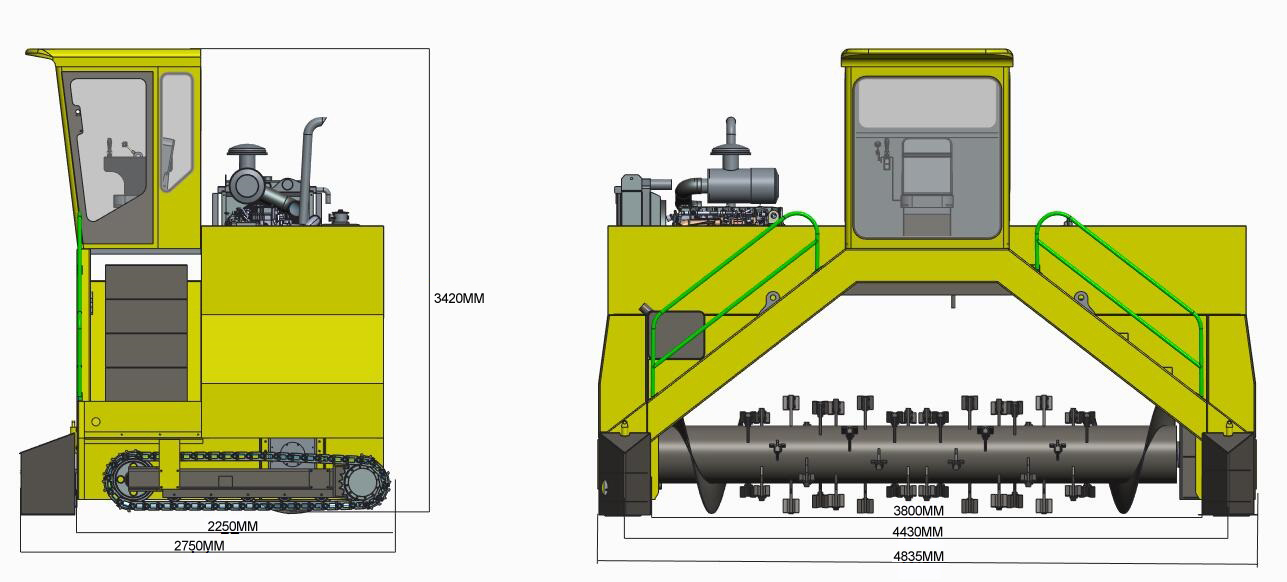

    Model M3800 Ground clearance 120mm H2
    Rate Power 132KW(180PS) Ground pressure 0.55Kg/cm²
    Rate speed 2200 r/min Working width 3800~4300mm Max.
    Fuel consumption ≤235g/KW·h Working height 1700mm Max.
    Battery 24V 2×12V Pile shape Triangle 42°
    fuel capacity 200L Forward speed L: 0-8m/min H: 0-21m/min
    Crawler tread 4430mm W2 Rear speed L: 0-8m/min H:0-21m/min
    Crawler size 300mm Steel with shoe Feed port width 3800
    Oversize 4835×2750×3420 mm W3×L1×H1 Turning radius 2700mm min
    Weight 6000kg Without fuel Drive mode Hydraulic control
    Diameter of roller 876mm With knife Working capacity 1500m³/h Max.

    compost turner
    Compost turner's CUMMINS ENGINE

    Efficient, Energy-saving and Powerful Engine

    Professionally adjusted, specially custom, high quality brand turbocharged engine. It has strong power, low fuel consumption and high reliability, and meets the requirements of various complex working conditions of the compost turner.

    (M2600 and above models equipped with Cummins engine)

    Hydraulic system

    Hydraulic Control Valve

    High-tech content control valve, upgraded and optimized hydraulic system. It has high quality, excellent performance, long service life and low failure rate.

    Integrated operation by the single handle.

    ROLLER of compost turner

    Specially Designed Roller

    Manganese steel cutters on the roller are strong and corrosion resistant. By scientific spiral design, while the machine crushing the raw materials, mixing and turning the raw materials uniformly with one thousandth dispersion, and filling the compost with oxygen and cooling at the same time.

    Please choose special rollers and knives according to the different characteristics of raw materials.
