M5000 windrow compost turner

Short Description:

TAGRM’s M5000 organic fertilizer turner is a new product that builds on the M4800. It has a diesel engine with 240Kw output power, 5 meters working breadth, and working efficiency of 2500 cubic meters per hour.The new hydraulic system is also employed, which enhances stability and durability and is more in line with the modern technical trend.


Product Detail

Product Tags

With the increased use of organic compost in agricultural production around the world, more and more large-scale compost facilities have sprouted up, creating demand for high-horsepower compost turners. Due to the following benefits of high-horsepower compost turners:

Process large amounts of organic waste: Large composting plants need to manage a large volume of organic waste, including sludge, food scraps, livestock manure, and so on. Big compost piles can be efficiently turned by high-horsepower compost turners, ensuring that fermentation happens uniformly across the big compost piles.

Efficient Mixing and Aeration: Efficient mixing and aeration are crucial for composting performance. Compost turners with high horsepower can thoroughly mix materials, introduce oxygen, and ensure that all portions of the compost pile are subjected to the same composting conditions. This facilitates constant decomposition and prevents anaerobic zones from forming.

Rapid decomposition: Large composting plants frequently have a higher demand for finished compost. Tumblers with high horsepower accelerate the composting process by generating ideal conditions for microorganisms to quickly break down organic materials. This enables the compost plant to sustain higher turnover rates and faster compost production.

Temperature Control: Keeping large compost windrows at the right temperature is crucial for eradicating pathogens and weed seeds and for efficient decomposition. Compost turners with high horsepower can help to spread heat uniformly throughout the compost, ensuring that the entire compost reaches the desired temperature.



TAGRM's M5000 organic fertilizer compost turner has been further upgraded and improved in the structure and appearance of the machine. It is equipped with an engine with greater output power, and at the same time, it has enhanced heat dissipation performance and increased work sustainability; and The redesigned internal transmission and hydraulic lifting system, as well as the modern control system, provide a simpler and smoother running experience.





PRODUCT PARAMETERS

Model M5000   Ground clearance 100mm H2
Rate Power 240KW(326PS) WEICHAI Ground pressure 0.75Kg/cm²
Rate speed 2200 r/min   Working width 5000mm Max.
Fuel consumption ≤231g/KW ·h   Working height 2200mm Max.
Battery 24V 2×12V Pile shape Triangle 42°
fuel capacity 200L   Forward speed L: 0-8m/min H: 0-21m/min
Crawler tread 5685mm W2 Rear speed L: 0-8m/min H:0-21m/min
Crawler size 400mm Steel

shoe

with Feed port width 4900 W1
Oversize 6230×4035×4240mm   Turning radius 3200mm mini
Weight 10000kg Without fuel Drive mode Hydraulic control
Diameter of roller 1080mm With knife Working capacity 2500m³/h

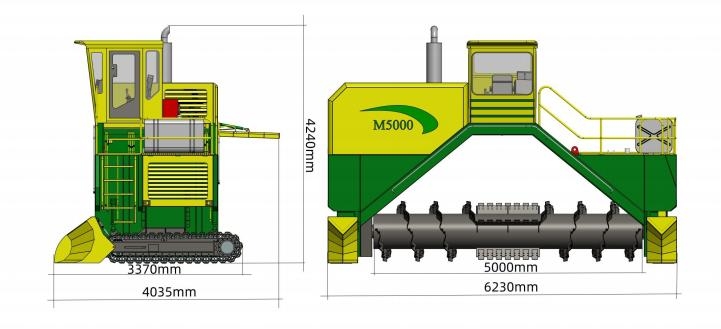

TAGRM turner M5000

ENGINE SPECIFICATION

Brand WEICHAI Peak Torque/Speed 1550/ 1200- 1500N.m/rpm
Model WP10 Cold Style Water-cooled
Displacement 9.726L Emission standard China stage IIA
Cylinder diameter 126mm Cylinder No. 6
Piston stroke 130mm Electronic control system ECM
Rate speed 1500r/min Fuel Diesel
Roted Power 246kW Weight 875KG
Fuel consumption 231g/Kw.h Working temp -30~50C

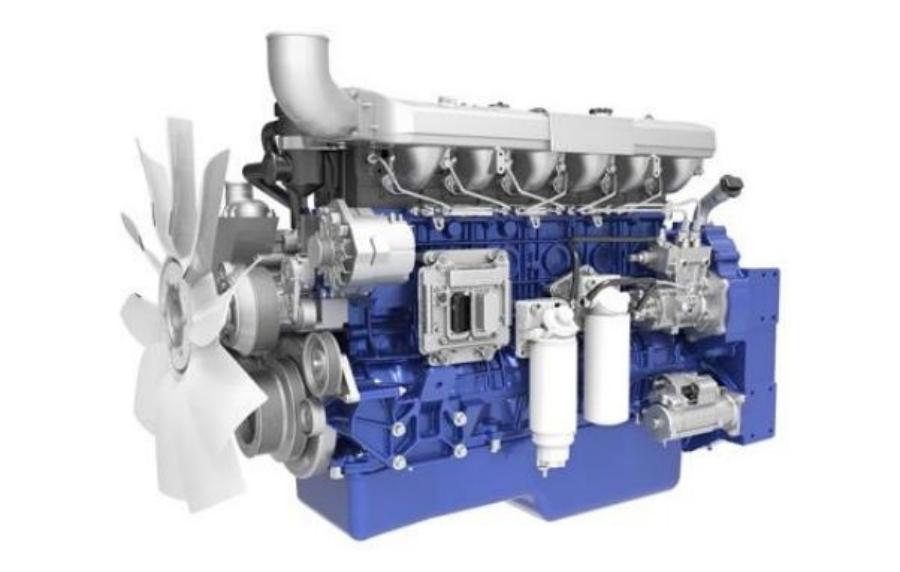

M5000 engine
