M2600 Organic Waste Compost turner

Short Description:

TAGRM’s M2600 is a crawler-type small and medium-sized compost turner. All steel frame structure with thick steel plate, equipped with 112 horsepower Cummins diesel engine, efficient and durable hydraulic transmission system, hardened rubber tires, the maximum working width of 2.6 meters, the maximum working height of 1.2 meters,The M2600 windrow turner can effectively process low-humidity organic materials such as organic domestic waste, straw, grass ash, animal manure, etc. It is especially suitable for small composting plants or farms for personal use. Ideal equipment for conversion to bio-organic compost.


  • Model: M2600
  • Rate Power: 84KW
  • Fuel consumption: <235g/KW-h
  • Working width: 2600mm
  • Working height: 1200mm
  • Working capacity: 720m3/h
  • Product Detail

    Product Tags

    Product parameter



    Model M2600 Ground clearance 130mm
    Rate Power 84KW Ground pressure 0.46Kg/cm2
    Rate speed 2200r/min Working width 2600mm Max.
    Fuel consumption <235g/KW-h Working height 1200mm Max.
    Battery 24V 2x12V Pile shape Triangle 45°
    fuel capacity 40L Forward speed L: 0-8m/min H: 0-24m/min
    Track tread 2830mm W2 Rear speed L: 0-8m/min H:0-24m/min
    Feed port width 2600mm W3 Turning radius 1875mm min
    Oversize 3400x2330x2850mm WlxLlxHl Drive mode Hydraulic
    Weight 3110kg Without fuel Working capacity 720m3/h Max.
    Diameter of roller 497mm With knife

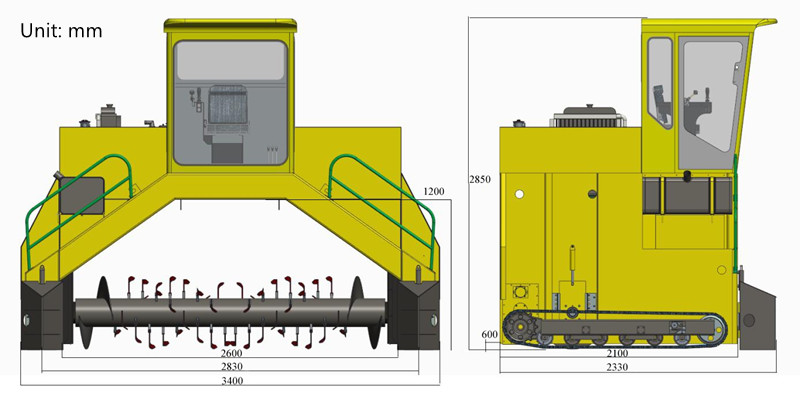

    compost turner M2600 design

    WORKING CONDITION:
    1. The work place should be smooth, solid and convex-concave surface more than 50mm is prohibited.
    2. The width of the strip material should be no larger than 2600mm; the height could be max reach 1200mm.
    3. The front and the end of the material need 15 m place for turning, the row space of strip material compost hill should be at least 1 meter.

    compost windrow site_副本800

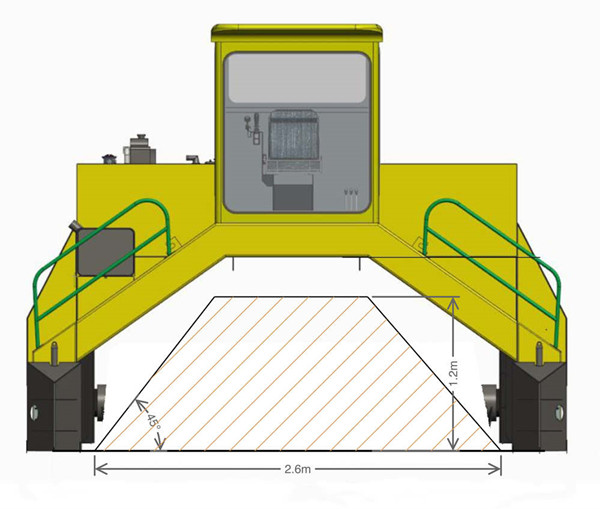

    Recommended maximum size of compost windrow(cross section):

    compost turning machine

    Liftable roller:

    The M2600 is equipped with a liftable roller, so that the user can adjust the working height of the drum according to the condition of the material.

    roller lifting test

    The function of the compost turner:

    1. Stirring function in raw material conditioning.

    In compost production, to adjust the carbon-nitrogen ratio, pH, water content, etc. of raw materials, some auxiliary materials must be added. The main raw materials and various auxiliary materials, which are roughly stacked together in proportion, can be mixed evenly by the turning and polishing machine to achieve the purpose of conditioning.​​

    2. Adjust the temperature of the raw material pile.

    compost raw material

    During the operation of the compost turning machinethe raw material pellets are fully contacted and mixed with the air, and a large amount of fresh air can be contained in the material pile, which is beneficial for aerobic microorganisms to actively generate fermentation heat, and the temperature of the pile rises; when the temperature is high, fresh air can be supplemented. Reduce the temperature of the stack. A cycle of medium temperature - high temperature - medium temperature - high temperature is produced, and many beneficial microorganisms proliferate and reproduce fast in the temperature range to which they are accustomed.



    3. Improve the permeability of the raw material windrow pile.

    The turning system may process the material into tiny clumps, transforming the viscous and thick material pile into fluffy and elastic clumps with appropriate porosity.



    4. Adjust the moisture of the raw material windrow pile.

    The ideal water percentage for raw material fermentation is about 55%, while the moisture level of final organic fertilizer is less than 20%. Biochemical processes create fresh water during fermentation, and the consumption of raw materials by microbes causes water to shed its carrier and become free. As a result, in addition to the evaporation generated by heat conduction, the turning of the raw material by the turning machine will form necessary water vapor emission with the timely reduction of water throughout the fertilizer-making process.



    5. To realize the special requirements of the composting process.

    For example, the crushing of raw materials, giving a certain shape to the raw material pile or realizing quantitative displacement of raw materials, etc.

    The process of making compost:

    1. As fertilizer foundation materials, Livestock and poultry manure and other materials, organic household waste, sludge, and so on are utilized; pay attention to the carbon-nitrogen ratio (C/N): Because composting materials have varying C/N ratios, we must employ The C/N ratio is kept at the 25~35 level that the microbe like allowing fermentation to proceed smoothly. The completed compost typically has a C/N ratio of 15~25.

    characteristics for the composting process

    2. After adjusting the C/N ratio, it may be blended and layered. The idea at this point is to regulate the compost's total moisture level to 50-60% before beginning. If the water content of livestock and poultry manure and other materials, domestic garbage, sludge, and so on is too high, you can add organic matter, relatively dry auxiliary materials that can absorb water, or use the backflow method to place the dry fertilizer below to form strips, and then place the containing material on top. The middle is filled with livestock and poultry dung and other materials, household rubbish, sludge, and other items, as well as a huge volume of water, so that the water above can seep to the bottom and be turned over.



    3. Stack the base material in strips on a flat surface. The stack width and height should be equal to the working width and height of the equipment as much as possible, and the specific length needs to be calculated. TAGRM's turners are equipped with integral hydraulic lifting and drum hydraulic lifting technology, which can adjust themselves to the maximum size of the stack.

    windrow pile

    4. Sprinkle the fertilizer base materials such as the piled livestock and poultry manure and other materials, domestic garbage, sludge, etc. with biological fermentation inoculants.

    5. Use the compost turning machine to evenly mix the straw, livestock and poultry manure and other organic materials, domestic garbage, sludge, (water content should be 50%-60%), fermentation bacteria agent, etc., and it can be deodorized in 3-5 hours. , 16 hours to heat up to 50 degrees (about 122 degrees Fahrenheit), when the temperature reaches 55 degrees (about 131 degrees Fahrenheit), turn the heap again to add oxygen, and then start stirring whenever the temperature of the material reaches 55 degrees to achieve uniform fermentation, The effect of increasing oxygen and cooling, and then repeat this process until it is completely decomposed.

    TAGRM compost turner

    7. The general fertilization process takes 7-10 days. Due to different climates in different places, it may take 10-15 days for the material to be completely decomposed. high, potassium content increased. Powdered organic fertilizer is made.

    Compost turning operation:

    1. It can be controlled by both temperature and smell. If the temperature is higher than 70°C (about 158 degrees Fahrenheit), it should be turned over, and if you smell the smell of anaerobic ammonia, it should be turned over.

    2. When turning the pile, the inner material should be turned outward, the outer material should be turned inside, the upper material should be turned downward, and the lower material should be turned upward. This ensures that the material is fully and evenly fermented.
