M2000 Wheel Type Turner

Short Description:

TAGRM M2000 is a small self-propelled organic compost turner, all steel frame structure, equipped with 33 horsepower diesel engine, efficient and durable hydraulic transmission system, hardened rubber tires, the maximum working width of 2 meters, the maximum working height of 0.8 meters, can also be equipped with spraying system of fermentative liquid(300L liquid tank).The M2000 can effectively process low-humidity organic materials such as organic domestic waste, straw, grass ash, animal manure, etc. It is especially suitable for small composting plants or farms for personal use. Ideal equipment for conversion to bio-organic compost.

Model: M2000

Lead Time: 15 Days

Type: Self-propelled

Working Width : 2000mm

Working Height: 800mm

Working Capacity: 430m³/h

Send email to us

Product Detail

Product Tags

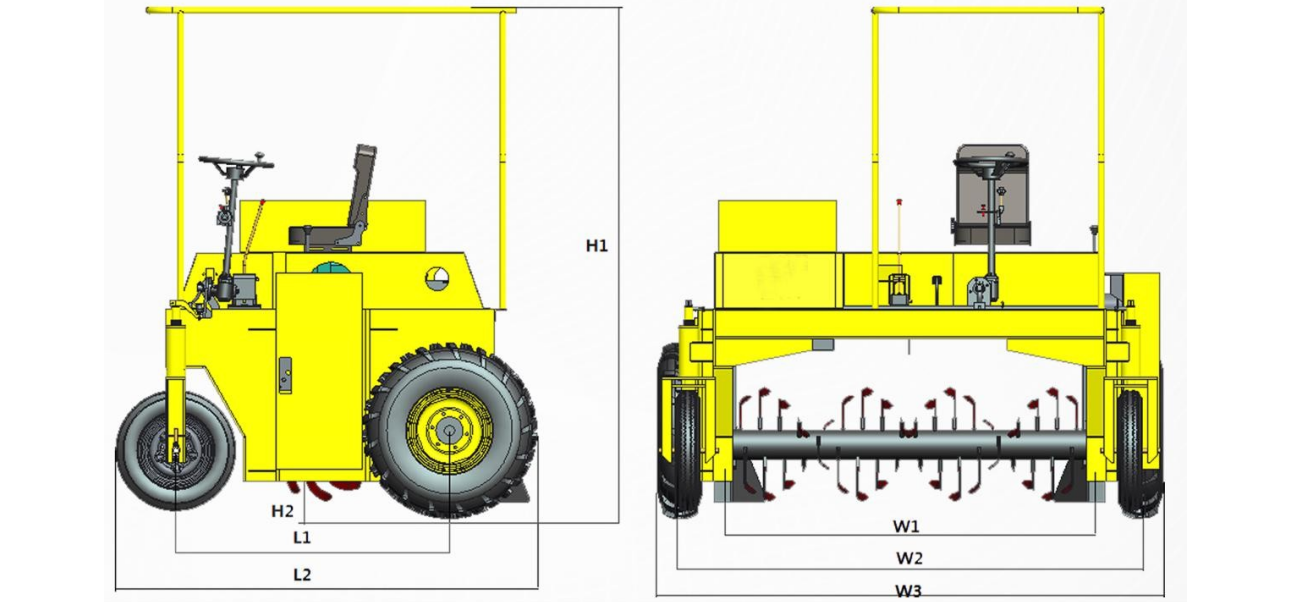

Product parameter

Model	M2000 windrow turner		Ground clearance	130mm	H2
Rate Power	24.05KW（33PS）		Ground pressure	0.46Kg/cm²
Rate speed	2200r/min		Working width	2000mm	W1
Fuel consumption	≤235g/KW·h		Working height	800mm	Max.
Battery	24V	2×12V	Pile shape	Triangle	45°
Fuel capacity	40L		Forward speed	L: 0-8m/min H: 0-40m/min
Wheel tread	2350mm	W2	Rear speed	L: 0-8m/min H:0-40m/min
Wheel base	1400mm	L1	Turning radius	2450mm	min
Oversize	2600×2140×2600mm	W3×L2×H1	Diameter of roller	580mm	With knife
Weight	1665kg	Without fuel	Working capacity	430m³/h	Max.

WORKING CONDITION：

1. The work place should be smooth, solid and convex-concave surface more than 50mm is prohibited.

2. The width of the strip material should be no larger than 2000mm; the height could be max reach 800mm.

3. The front and the end of the material need 15 m place for turning, the row space of strip material compost hill should be at least 1 meter.

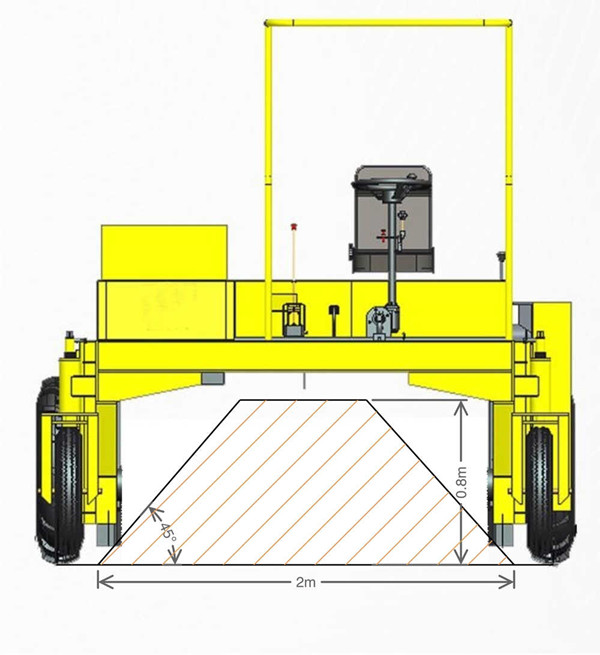

Recommended maximum size of compost windrow(cross section):

Reference raw organic material：

Shredded coconut shell, straw, straw, weeds, palm filament, fruit and vegetable peels, coffee grounds, fresh leaves, Stale bread, mashroom, pig manure, cow manure, sheep manure, try not to add meat and dairy products. In order to prevent the loss of nitrogen during the decomposition process of compost, highly absorbent substances, such as peat, clay, pond mud, gypsum, superphosphate, phosphate rock powder and other nitrogen-retaining agents, should be added when composting.

Video

The process of making compost:

1.As fertilizer foundation materials, livestock and poultry manure and other materials, organic domestic waste, sludge, and so on are employed, pay attention to the carbon-nitrogen ratio (C/N): Because composting materials have varying C/N ratios, we must employ The C/N ratio kept at the 25~35 level that the microbe like allowing fermentation to proceed smoothly. The completed compost typically has a C/N ratio of 15~25.

2. After adjusting the C/N ratio, it can be blended and stacked. The idea at this point is to adjust the compost's overall moisture content to 50-60% before beginning. If the water content of livestock and poultry manure and other materials, domestic garbage, sludge, and so on is too high, you can add organic matter, relatively dry auxiliary materials that can absorb water, or use the backflow method to place the dry fertilizer below to form strips, and then place the containing material on top. The middle is filled with livestock and poultry dung and other materials, domestic rubbish, sludge, and other items, as well as a huge volume of water so that the water above can seep to the bottom and be turned over.

3. On a level surface, stack the foundation material in strips. The stack width and height should be as close to the equipment's operational width and height as practicable, and the precise length must be calculated. TAGRM's compost turners have inbuilt hydraulic lifting and drum hydraulic lifting technology and can adapt to the maximum size of the stack.

4. Sprinkle the fertilizer base materials such as the piled livestock and poultry manure and other materials, domestic garbage, sludge, etc. with biological fermentation inoculants.

5. Use the compost turner to uniformly mix the straw, animal, and poultry manure and other organic materials, household waste, sludge (water content should be 50%-60%), fermentation bacteria agent, and other ingredients, and it may be deodorized in 3-5 hours. , 16 hours to heat up to 50 degrees (about 122 degrees Fahrenheit), turn the heap again to add oxygen, and then start stirring whenever the temperature of the material reaches 55 degrees to achieve uniform fermentation, The effect of increasing oxygen and cooling, and then repeat this process until it is completely decomposed.

6. The fertilization process takes 7-10 days in general. Due to varying conditions, it may take up to 10-15 days for the material to disintegrate fully. potassium content has risen. Organic fertilizer powder is created.

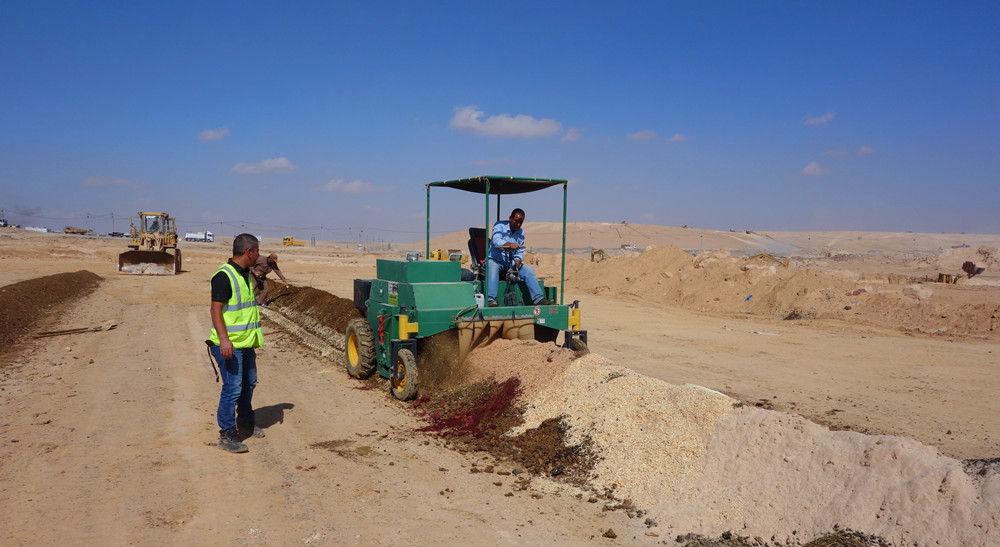

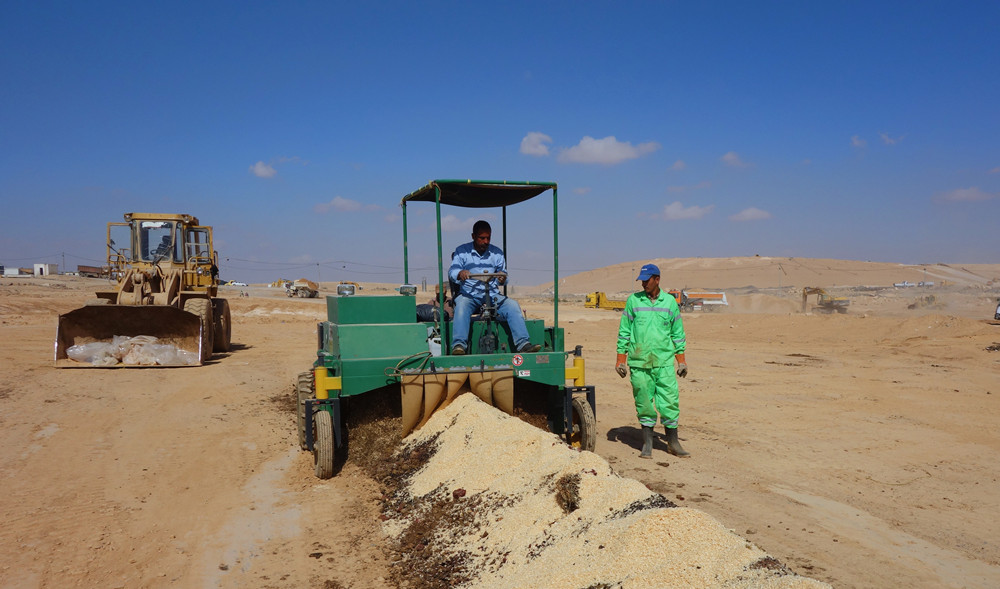

Successful case:

Jordan, the cattle and sheep manure composting project with an annual output of 10,000 tons, Mr. Abdullah purchased 2 sets of M2000 in 2016, and it is still in stable work.
