China New Product China Organic Fertilizer Compost Machine Animal Waste Drying Machine

Short Description:

The M3800 is a large-scale self-propelled composting machine in China, with a working width of up to 4.3m and a working height of 1.7m. Its main structure is made of a very thick steel plate, which provides TEGM’s composting substrate mixer with a strong, stable body, as well as the advantages of corrosion resistance and flexible rotation. It is equipped with a 108-horsepower high-power Cummins diesel engine, which can easily stir sludge, compost, and other materials with high humidity and high viscosity. Combined with the hydraulic integral lifting technology, it can adapt to various complex working conditions and greatly improve work efficiency. It is a powerful and versatile compost turner.


  • Model: M3800
  • Lead Time: 30 Days
  • Type: Self-propelled
  • Working Width : 3800~4300mm
  • Working Height: 1700mm
  • Working Capacity: 1500m³/h
  • Product Detail

    Product Tags

    Our pursuit and corporation aim should be to “Always satisfy our consumer requirements”. We carry on to build and style and design remarkable quality items for both our outdated and new clients and reach a win-win prospect for our clients at the same time as us for China New Product China Organic Fertilizer Compost Machine Animal Waste Drying Machine, Our corporation maintains risk-free enterprise combined by truth and honesty to maintain long-term interactions with our clients.
    Our pursuit and corporation aim should be to “Always satisfy our consumer requirements”. We carry on to build and style and design remarkable quality items for both our outdated and new clients and reach a win-win prospect for our clients at the same time as us for Aerobic Fermenter, China Compost Fermenter, Our staffs are adhering to the “Integrity-based and Interactive Development” spirit, and the tenet of “First-class Quality with Excellent Service”. According to the needs of every customer, we supply customized & personalized services to help customers achieve their goals successfully. Welcome clients from home and abroad to call and inquire!

    Product parameter

    Model M3800 Ground clearance 120mm H2
    Rate Power 132KW(180PS) Ground pressure 0.55Kg/cm²
    Rate speed 2200 r/min Working width 3800~4300mm Max.
    Fuel consumption ≤235g/KW·h Working height 1700mm Max.
    Battery 24V 2×12V Pile shape Triangle 42°
    fuel capacity 200L Forward speed L: 0-8m/min H: 0-21m/min
    Crawler tread 4430mm W2 Rear speed L: 0-8m/min H:0-21m/min
    Crawler size 300mm Steel with shoe Feed port width 3800

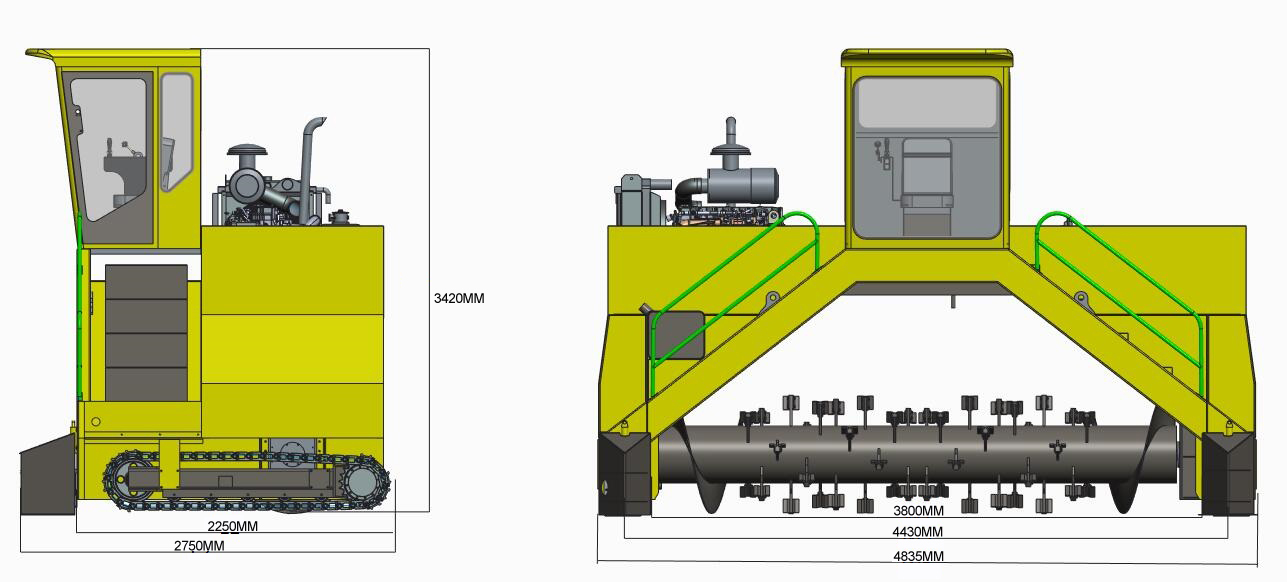

    Oversize 4835×2750×3420 mm W3×L1×H1 Turning radius 2700mm min
    Weight 6000kg Without fuel Drive mode Hydraulic control
    Diameter of roller 876mm With knife Working capacity 1500m³/h Max.

    compost turner
    Compost turner's CUMMINS ENGINE

    Efficient, Energy-saving and Powerful Engine

    Professionally adjusted, specially custom, high quality brand turbocharged engine. It has strong power, low fuel consumption and high reliability, and meets the requirements of various complex working conditions of the compost turner.

    (M2600 and above models equipped with Cummins engine)

    Hydraulic system

    Hydraulic Control Valve

    High-tech content control valve, upgraded and optimized hydraulic system. It has high quality, excellent performance, long service life and low failure rate.

    Integrated operation by the single handle.

    ROLLER of compost turner

    Specially Designed Roller

    Manganese steel cutters on the roller are strong and corrosion resistant. By scientific spiral design, while the machine crushing the raw materials, mixing and turning the raw materials uniformly with one thousandth dispersion, and filling the compost with oxygen and cooling at the same time.

    Please choose special rollers and knives according to the different characteristics of raw materials.
